Power supply unit and safety holder for spectrum tubes

The DL106-PS is a sturdy power supply with an integrated safety holder for DL106-ff series spectral tubes. It ensures safe handling and reliable operation of the spectral tubes in classrooms, training settings, and laboratories.

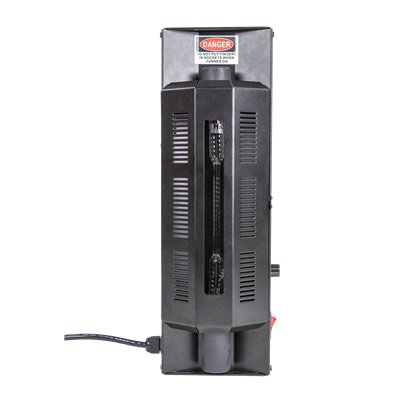

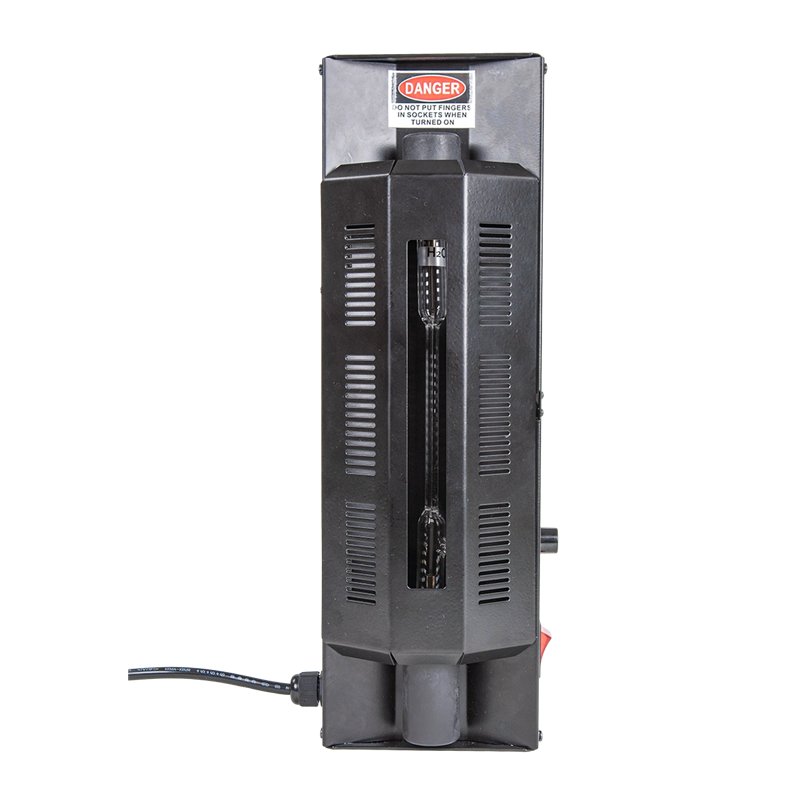

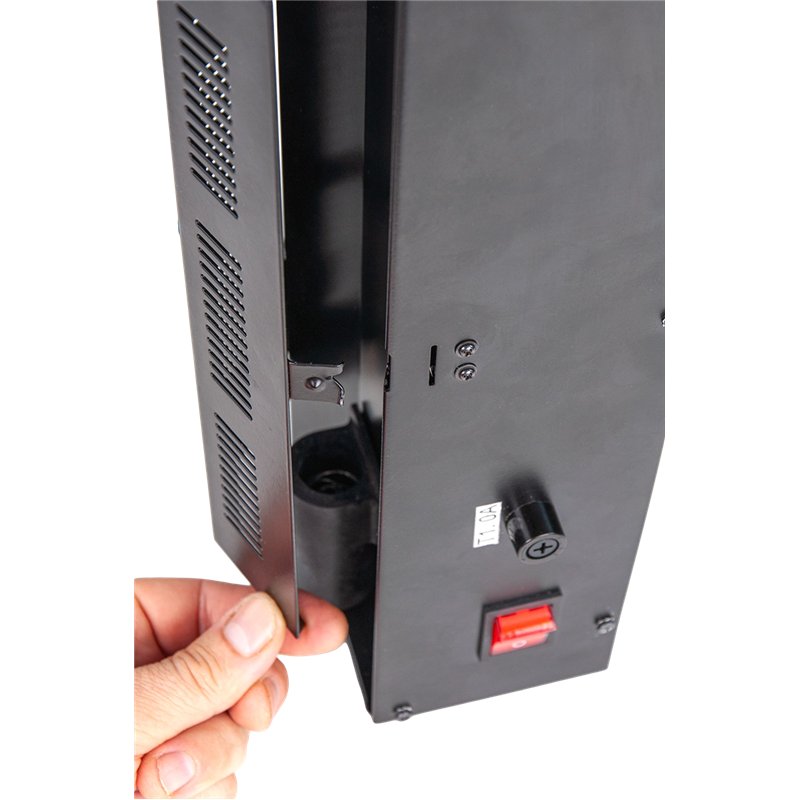

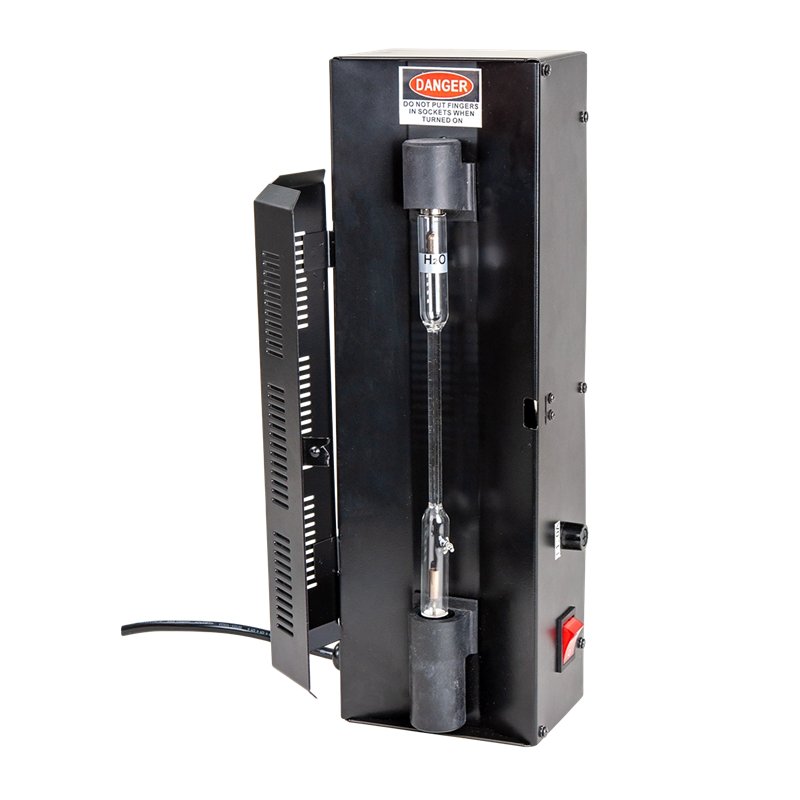

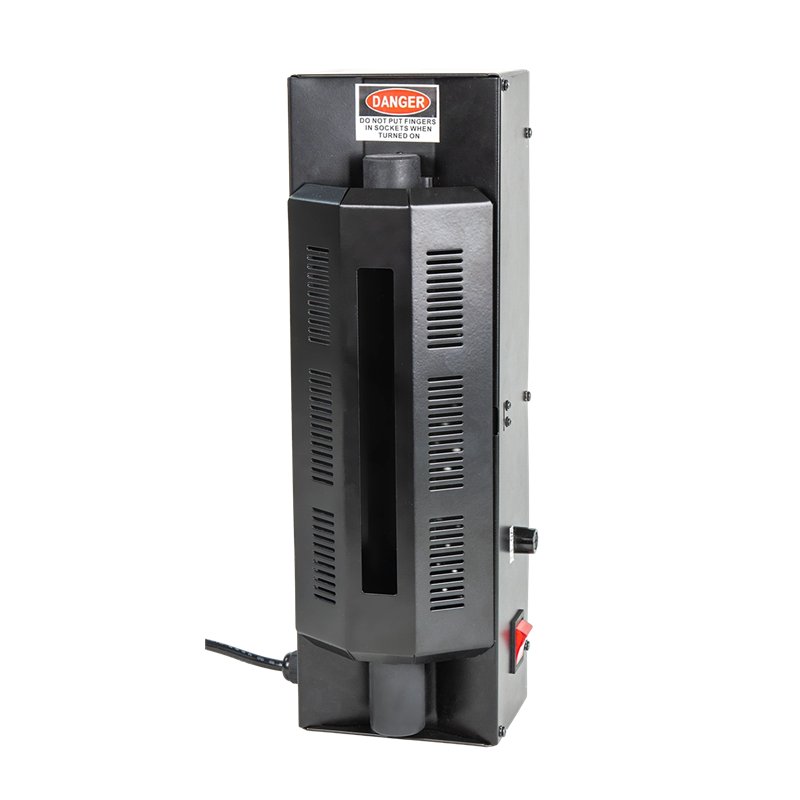

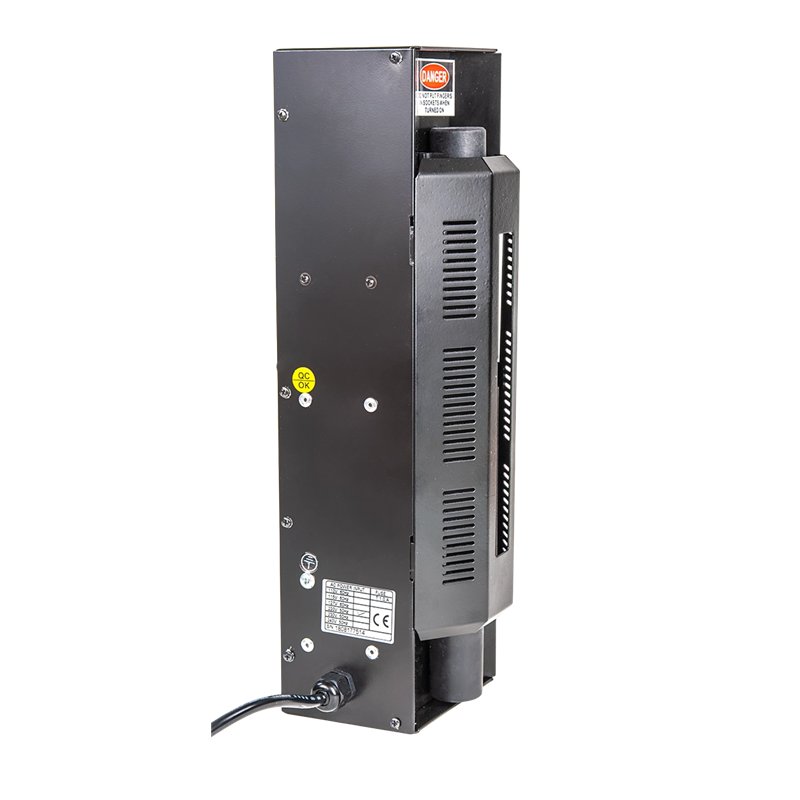

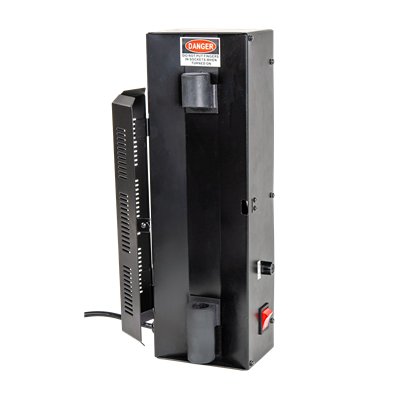

The sturdy metal housing features two insulated sockets with tension-spring contacts, as well as a protective cover with a light-emitting opening and cooling slots. An integrated circuit breaker automatically cuts off the power supply when the cover is opened, thereby increasing operational safety.

Technical data:
Output:           5000 V, max. 10 mA
Suitable for:    Spectral tubes DL106-ff

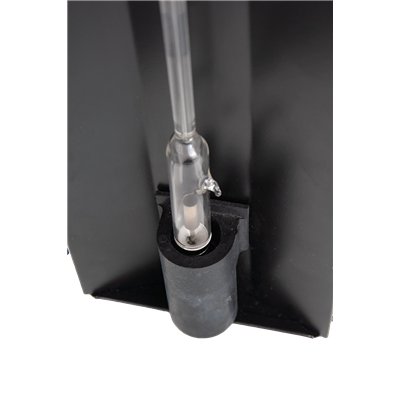

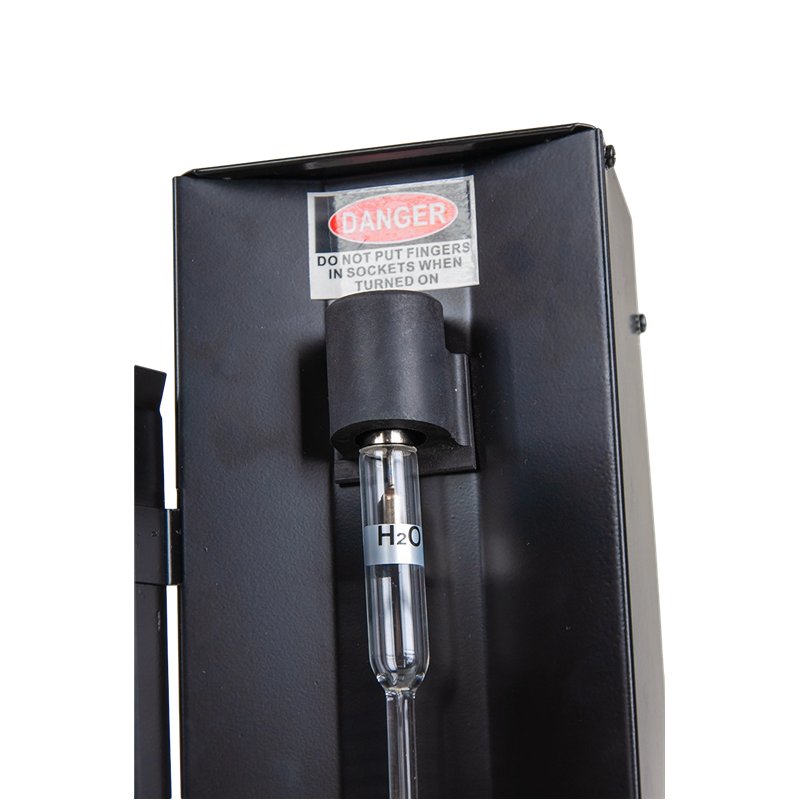

Socket:            Insulated socket with tension spring contact
Protection:      Protective cover with circuit breaker
Switch:            On/Off
Primary fuse:             1 A T
Supply Voltage:           220 … 230 V AC/50 … 60 Hz
Measurments:            approx. 120 x 110 x 370 mm (W x L x H)
Weight:                       ca. 2770 g

Additionally required:
DL106-ff          Spectral tubes
