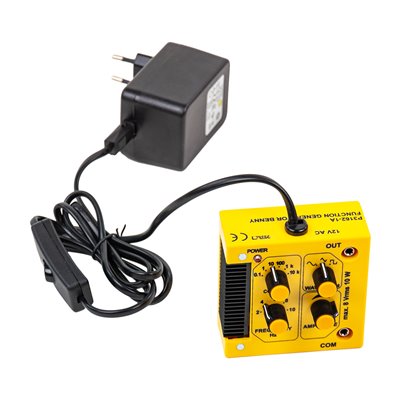

Function generator Benny
P3162-1A
149.96 €
Tax excluded
Powerful but inexpensive function generator for student experiments, for use in electronics, but also in mechanics and acoustics for operating motors or sound sources;
in combination with a multimeter that can measure a frequency, you have a function generator with a digital display;
the external power supply unit is RiSU-compliant and therefore enables a safe mains connection.
| Technical data: | |
| Waveforms: | Sine, triangle, square |
| Frequency range: | 60 mHz ... 100 kHz adjustable via coarse and fine control |
| Output voltage: | 0 ... 8 Vrms (max. 22 Vpp) |
| Output power: | max. 10 W (up to 20 kHz) |
| Rate of rise: | > 10 V/µs |
| Output voltage can be taken from 4 mm safety sockets, | |
| the output is short-circuit-proof and insensitive to inductive loads | |
| Protection systems: | |
| Overtemperature of the heat sink (< 100 °C), overcurrent supply, overcurrent output, inductive loads | |
| Power supply: | 230 V 50 ... 60 Hz (via permanently connected power supply unit: 12 Vac 22 VA) |
| On/off switch integrated in the power supply cable | |
| Function generator dimensions: | 84 x 84 x 54 mm (without mains cable) |
| Dimensions of plug-in power supply unit: | 84 x 57 x 49 (87) mm |
| Mass (function generator): | approx. 249 g |
| Weight (plug-in power supply unit): | approx. 520 g |
Also recommended as a display unit:
P3245-1M Multimeter digital, True RMS
