Motor - Generator model, "compact"

P3806-1M
88.04 €
Tax excluded
Quantity

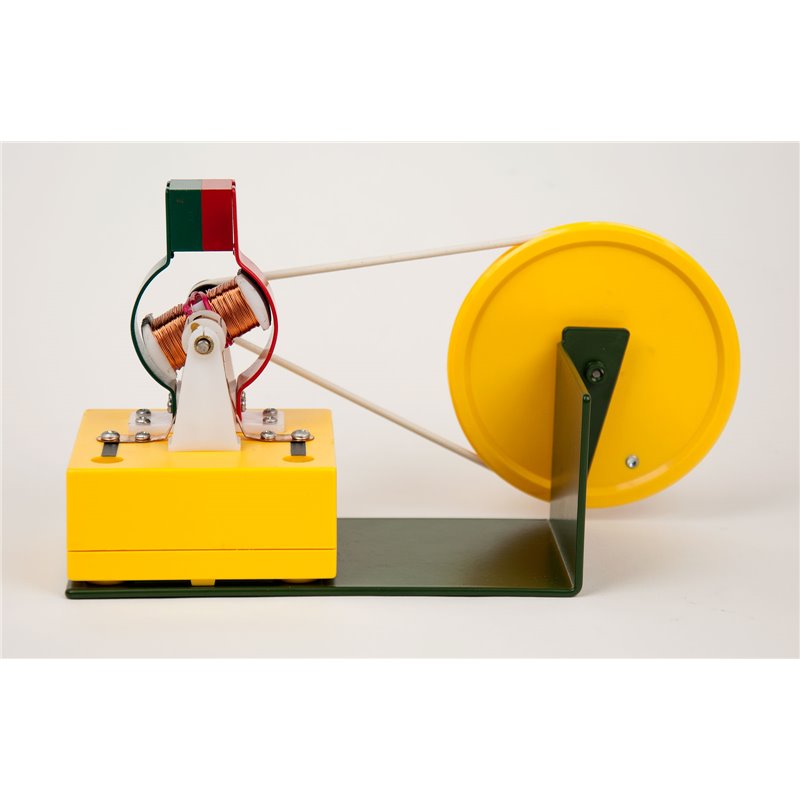

A small, finished working model of an electric motor/generator.
The open design of the model enables a transparent representation of the function.
Motor: The permanent magnet can be replaced by an electromagnet, allowing operation with DC or AC voltage. Of course, operation as a main or shunt motor is also possible!
Power supply: DC operation: 1.5 ... 5 V, AC operation: 6 ... 9 V
Generator: The model can also be operated as a generator thanks to a drive pulley with drive belt connected to the base plate. The generated voltage can be tapped at the two 4 mm sockets.
Voltage output: max. 3 V
Dimensions: 230 x 125 x 120 mm
Mass: approx. 620 g

Experiment(e) – aus der Versuchsanleitung P9110-1T Elektrodynamik

P3806-1M Versuche (PDF) (1MB)

Experiments – from the Experiment Manual P9160-4T Elektrodynamics

P3806-1M Experiments (PDF) (863.5KB)
