DL110-4L
Price on request
Quantity

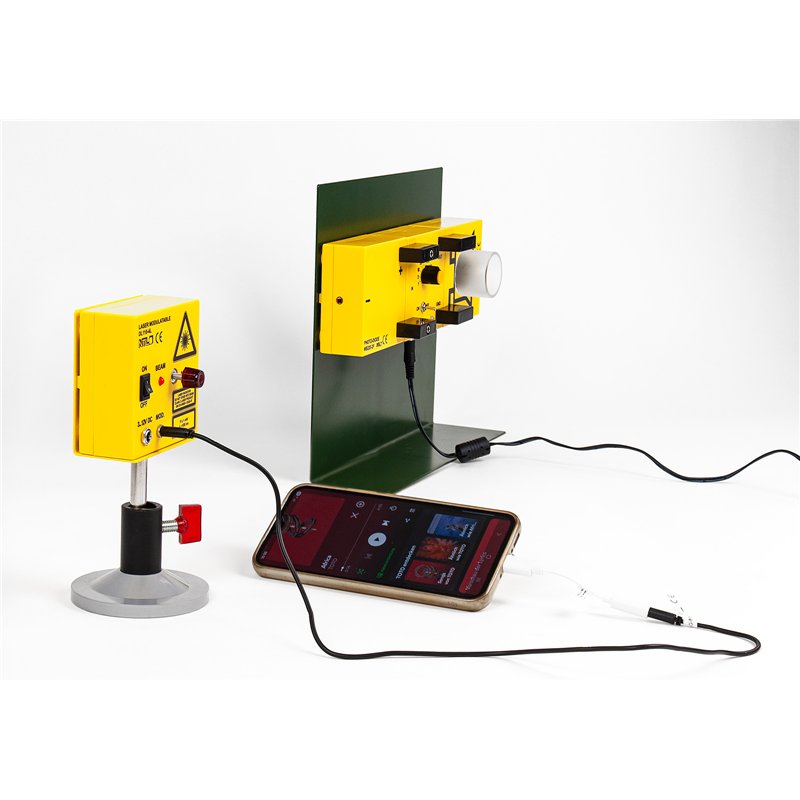

Class 2 educational laser for use as a high-intensity light source, for experiments in geometrical optics, wave optics (interference, diffraction, holography), and for transmitting music and digital signals;

Technical data:
Diode laser with coated acrylic lens
Wavelength: 635 nm
Optical output power: max. 1 mW
Beam size: typ. 4 × 2.5 mm
Polarization: linear
Internal modulation: digital (PCM)
Modulation input via jack socket
Operating indicator by means of LED
On/Off switch
Four strong neodymium magnets are built into the base plate for mounting on metal panels.

Operating voltage: 3 … 12 V DC, min. 50 mA

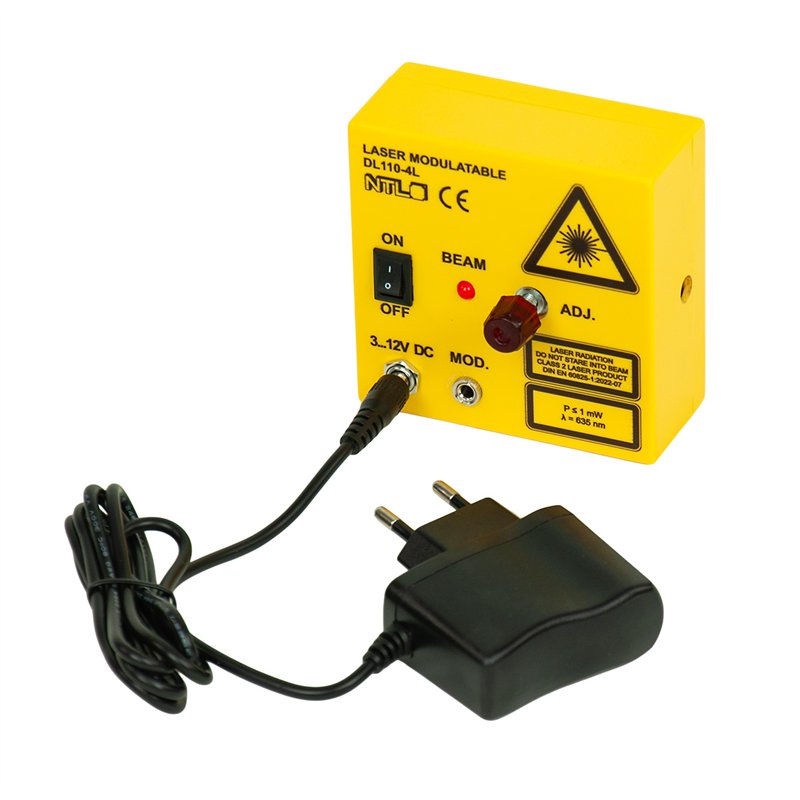

(Plug-in power supply included)
or integrated battery holder for 2 pcs. 1.5 V batteries (Mignon, AA, LR6)
Enclosure dimensions: 84 x 84 x 39 mm
Mass: approx. 150 g (without power supply)


For rail stand mounting, the DS617-1H Holder for “compact” components is required.
