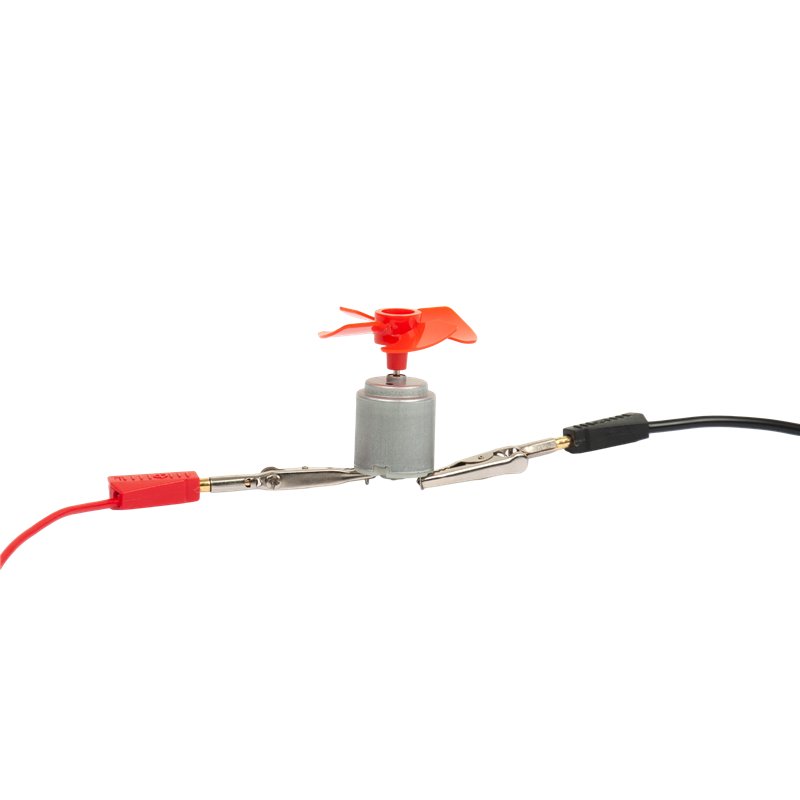

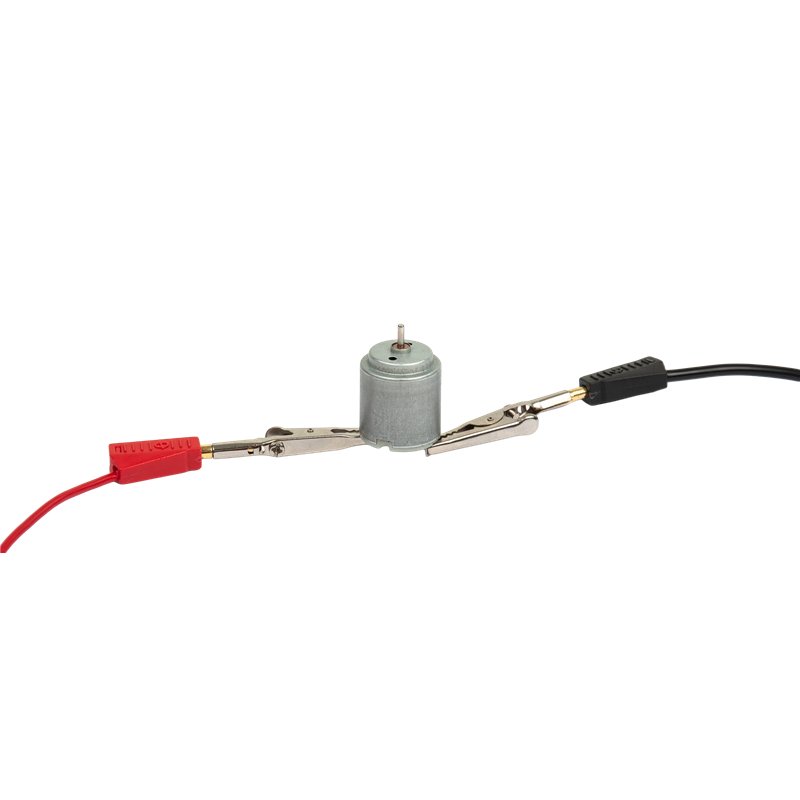

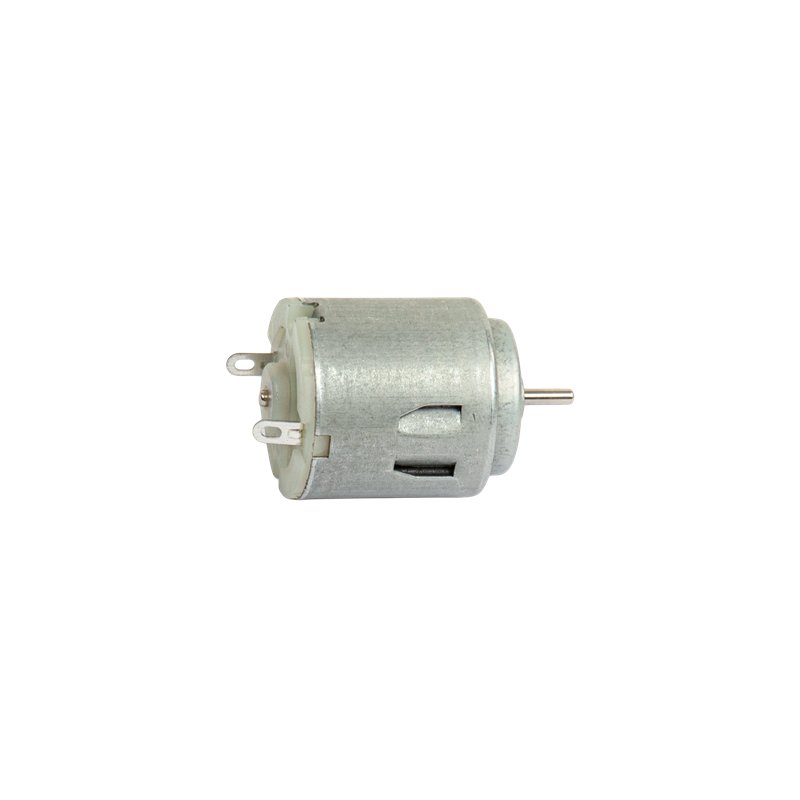

DC Motor (raw), 3 V, 13200 rpm

DC motor for model building or for simple experiments in electrical or electronic engineering in the lab or at school;
DC motor or DC generator in a metal housing, with holes on the front for mounting to enclosures, and two solder tabs for electrical connection

Operating voltage: 1,5 - 3 V
Nominal Voltage: 3 V
Revolutions (no load): max. 12300 U/min
Revolutions (under load): max. 10200 U/min
Power consumption (no load): max. 260 mA
Power consumption (under load): max. 1,75 A
Power: 1,7 W
Torque: max. 88 g/cm
Axle: 2 x 6 mm
Measurments: D = 24 mm, L = 31(38) mm
Mass: approx. 27 g
