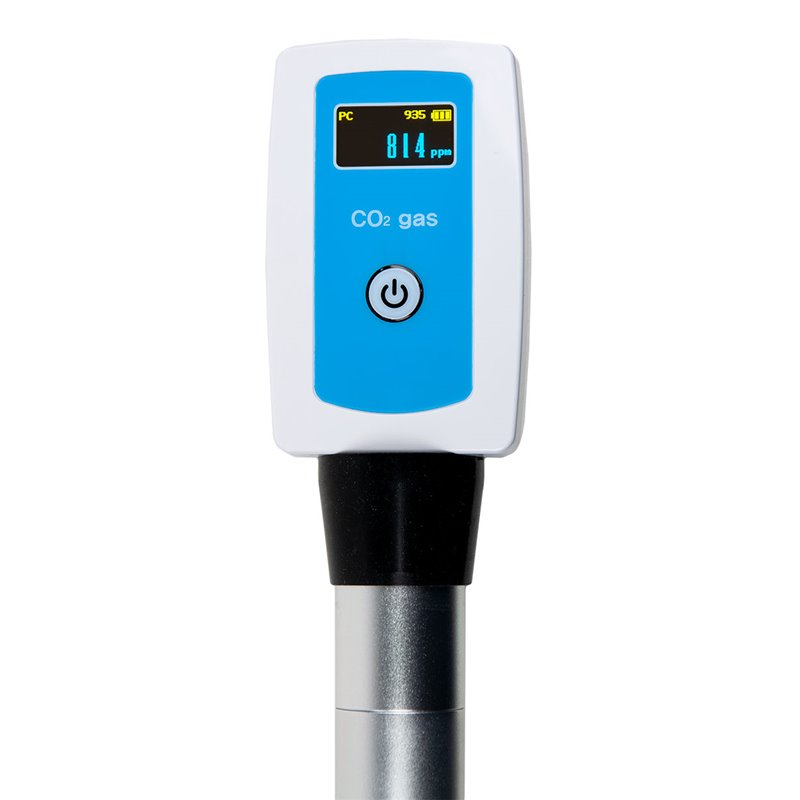

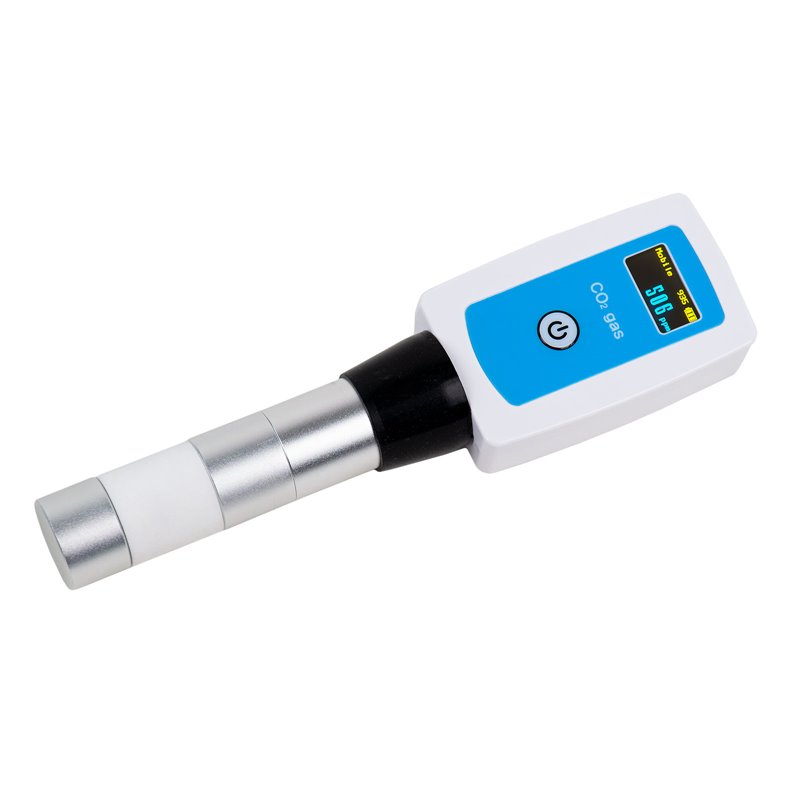

Sensor WLD, CO2 gas, 0 … 5000 ppm

For measuring the concentration of carbon dioxide in the air or in enclosed spaces.
Also suitable for measuring the amount of carbon dioxide produced by the respiration of small creatures such as crickets.

- Yeast respiration and photosynthesis
- Respiration rate as a function of temperature
- Metabolic rate of insects as a function of temperature
- Changes in citric acid and sodium bicarbonate

Measuring range: 0 … 5 000 ppm
Resolution: 1 ppm
Measuring accuracy: 3 % F.S.
Maximum sampling rate: 100 Hz
Housing dimensions: 80 x 50 x 25 mm

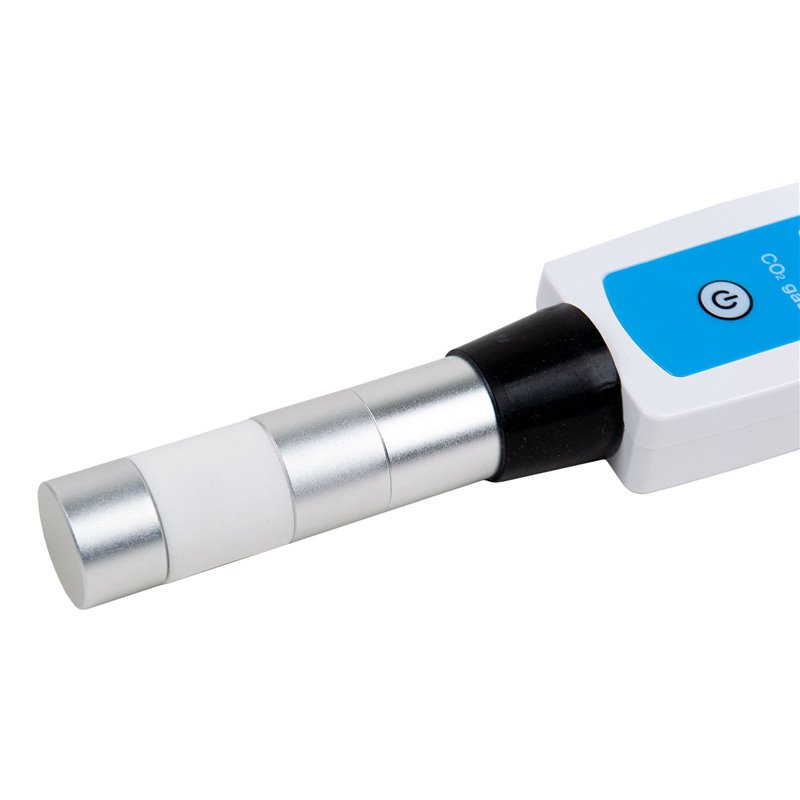

Probe dimensions: 25 x 110 mm
