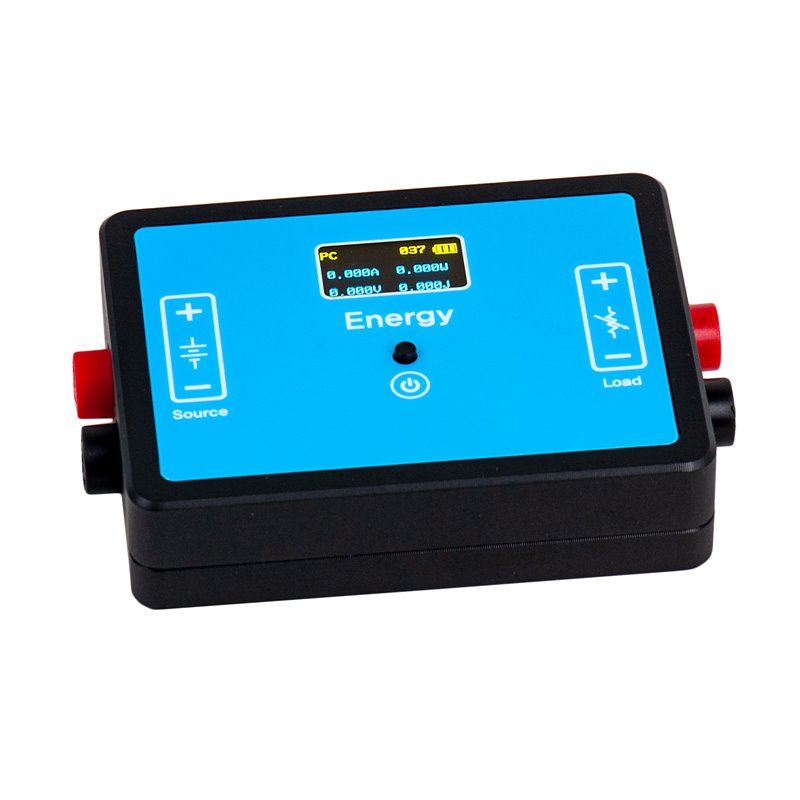

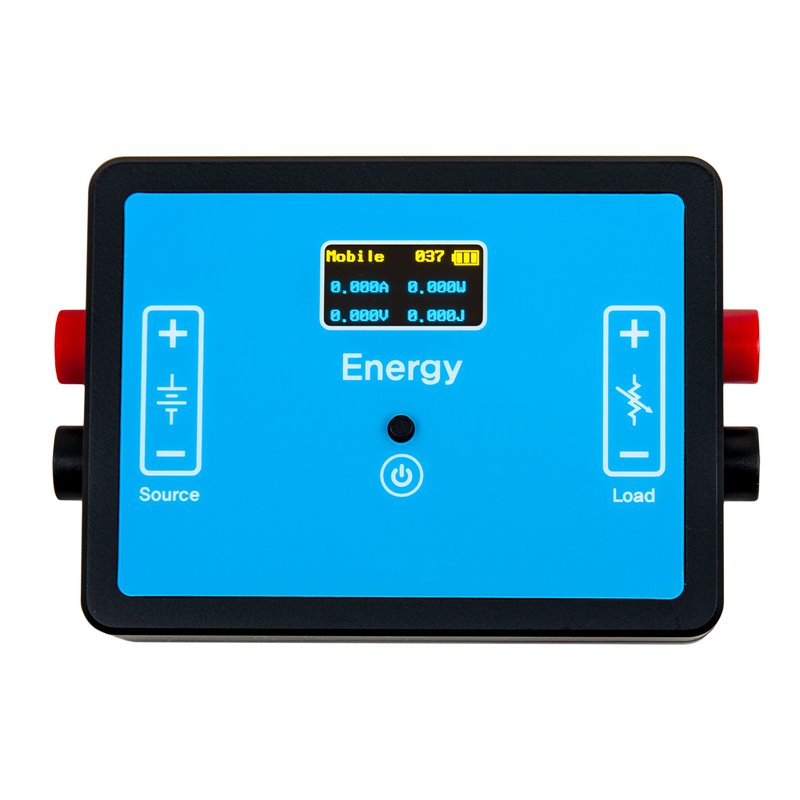

Sensor WLD, electric energy (power)

For monitoring, analysing and evaluating electrical energy sources – especially in the field of renewable energies such as solar or wind power.
With a simple connection, the sensor automatically calculates power, current, voltage and energy output,
helping students to understand the gap between theory and practical applications.

Real-time data acquisition and display enhances STEM learning through research, analysis and creative design projects.

Measuring areas:
Voltage: 0 … 36 V
Current: 0 … 1,0 A
Power: 0 …. 36 W
Energy: 0 …. 3600 J
Accuracy: ±0,5 %
Data refresh rate: 5x / s
Maximum sampling rate: 100 Hz
Housing dimensions: 90 x 68 x 23 mm

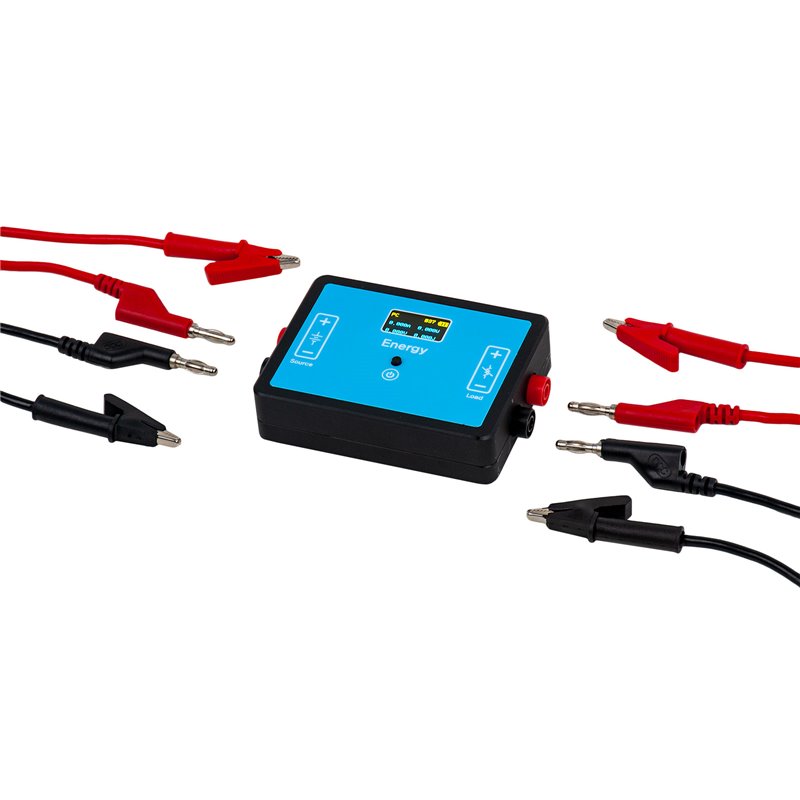

Delivery includes 4 laboratory cables with laboratory plugs and crocodile clips
