Air Track 200 cm, Set

Reference DM290-20

Price on request

Set consisting of:

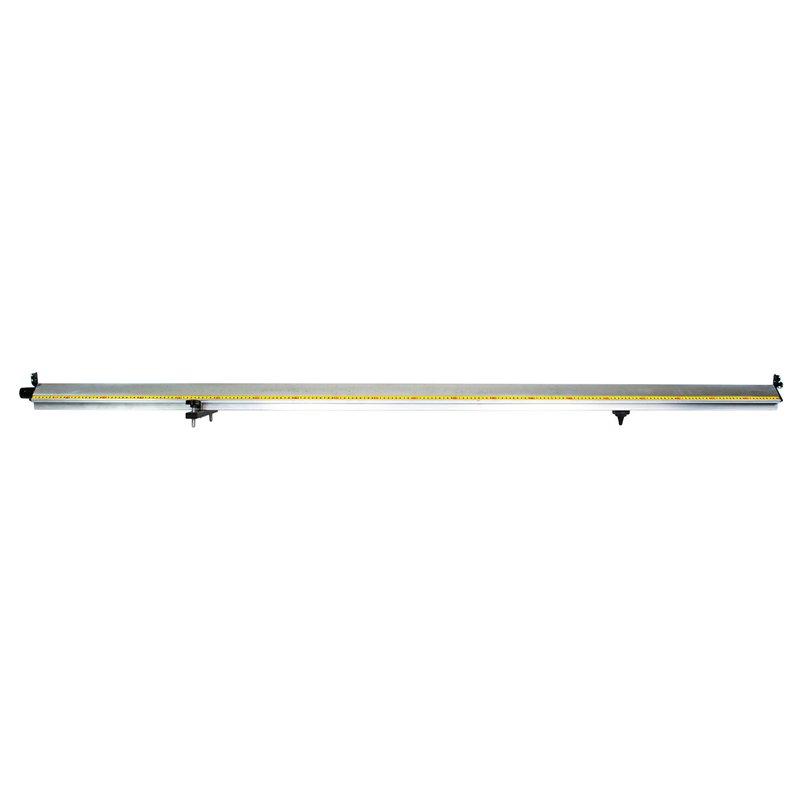

1x	DM290-20B	Air track 2, L = 200 cm
3x	DM290-5B1	Base plate for Air Track 2
1x	DM290-5B2	Bearing plate for Air Track 2, H = 5 mm
2x	DM290-5B3	Bearing plate for Air Track 2, H = 10 mm
2x	DM290-5C1	Glider 160 g, for Air Track 2
2x	DM290-5C2	Glider 320 g, for Air Track 2
2x	DM290-5D1	Shutter for glider, distance = 100 mm
2x	DM290-5D2	Shutter for glider, distance = 50 mm
2x	DM290-5D3	Shutter for glider, distance = 30 mm
2x	DM290-5D4	Shutter for glider, distance = 10 mm
2x	DM290-5D5	Shutter for glider, width = 5 mm
12x	DM290-5E	Additional weight for gliders, 50 g
6x	DM290-5F1	Spring for elastic shocks, D = 40 m
4x	DM290-5F2	Spring for elastic shocks, D = 50 mm
1x	DM290-5G1	Starter bracket for Air Track 2, adjustable
10x	DM290-5H1	Mounting pin for Air Track2, L = 10 mm
4x	DM290-5H2	Mounting pin for Air Track 2, L = 20 mm
2x	DM290-5K	Cleaning wire for Air Track
2x	DM290-5L	Pulley for Air Track 2
2x	DM290-5M	Hook attachment for glider
1x	DM290-5P	Velcro for inelastic collision, pair of
1x	DM290-5R	Cord with hook, for Air Track 2
2x	DM290-5S1	Coil spring for Air Track 2, 0.4 mm
2x	DM290-5S2	Coil spring for Air Track 2, 0.5 mm
2x	DM290-5S3	Coil spring for Air Track 2, 0.6 mm
2x	DM290-5U	Shutter for glider, for distance sensor
2x	P1120-2B	Slotted weight, 5 g, SE
2x	P1120-2D	Slotted weight, 10 g, SE
1x	P1120-2A	Holder for slotted weights, 5 g, SE

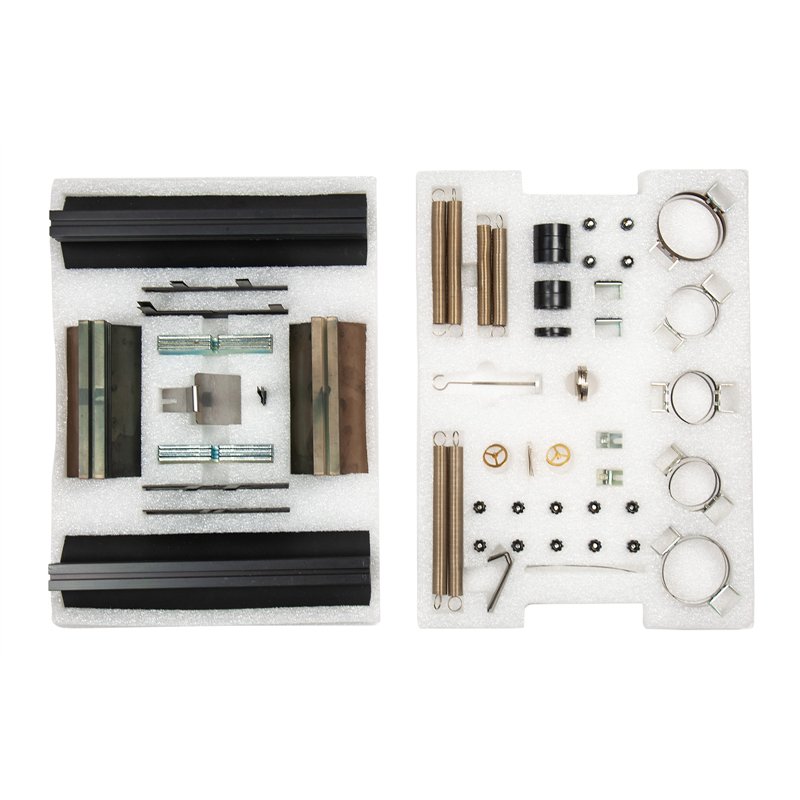

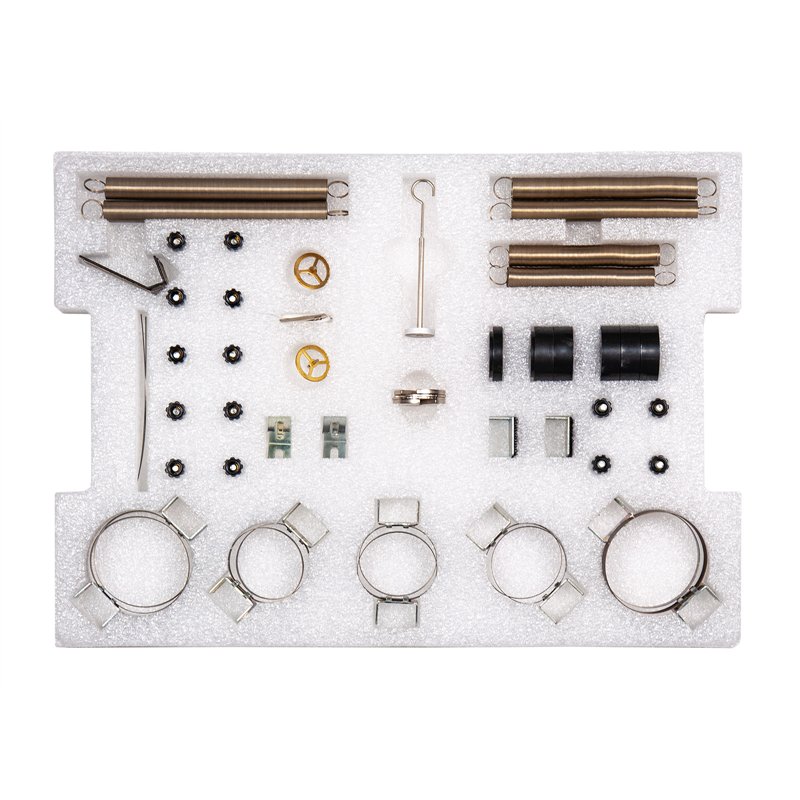

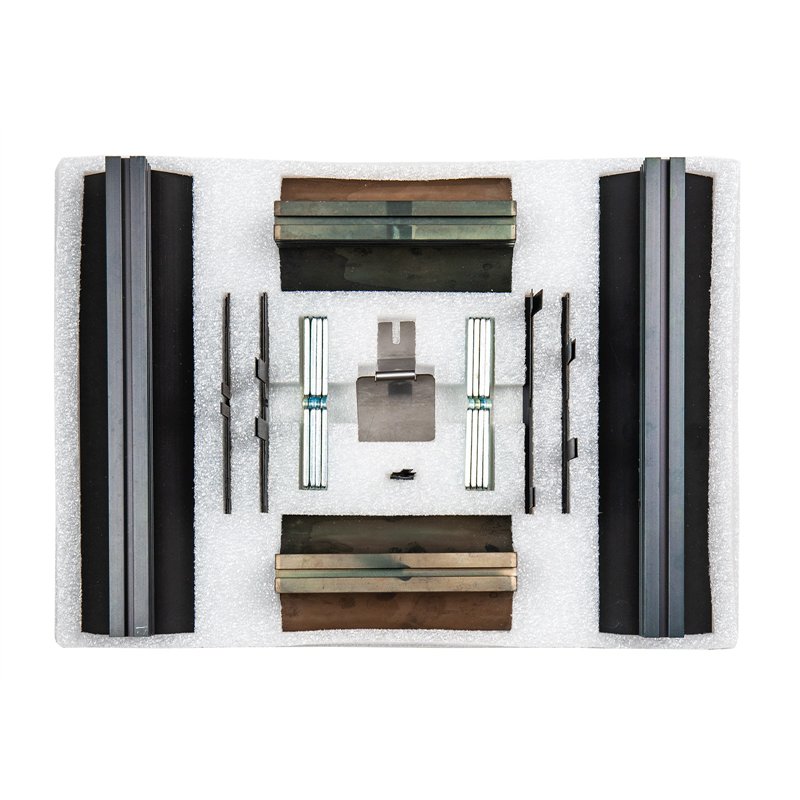

	Storage:
1x	DM290-8A	Box insert for Air track 2, Bottom
1x	DM290-8B	Box insert for Air track 2, Top
1x	P7806-1K	Storage box II small, with cover
		Plan for storage of all components
