P9902-4P
372.24 €
Tax excluded
Quantity

Recycle Seal

This student experiment box requires accessories!

Equilibrium on the vertical force table (2 experiments)

  • Equilibrium on the horizontal force table (2 experiments)
  • Equilibrium on the vertical force table (2 experiments)
  • Computer-supported measurement (3 experiments) - Accessories required
Outstanding features:
  • For quantitative representation of the decomposition of forces: Our force table - can be used horizontally and vertically!
  • Torques can also be investigated - with the torque accessory for the force table
  • Experiments on the moment of inertia are also possible with the optional ➜ Sensor motion
The SEK student experiments system by NTL:
  • Topic-oriented structure and division according to physical sub-areas
  • All areas of physics are covered
  • Didactically and thematically sensible division of the sub-areas into several boxes
  • Each part in the student box can also be ordered separately and purchased individually if required
  • Student experiment instructions based on the curriculum and ideally matched to the composition of the boxes
  • Clear arrangement of the box contents: only 1 material layer in all boxes, without confusing intermediate shelves
  • Extremely stable storage boxes, non-slip stackable - and made from 100% recycled material
  • Molded plastic box inserts do not become brittle and have a long service life
The standard scope of delivery of our SEK contains:
  • Complete equipment set for a group of pupils

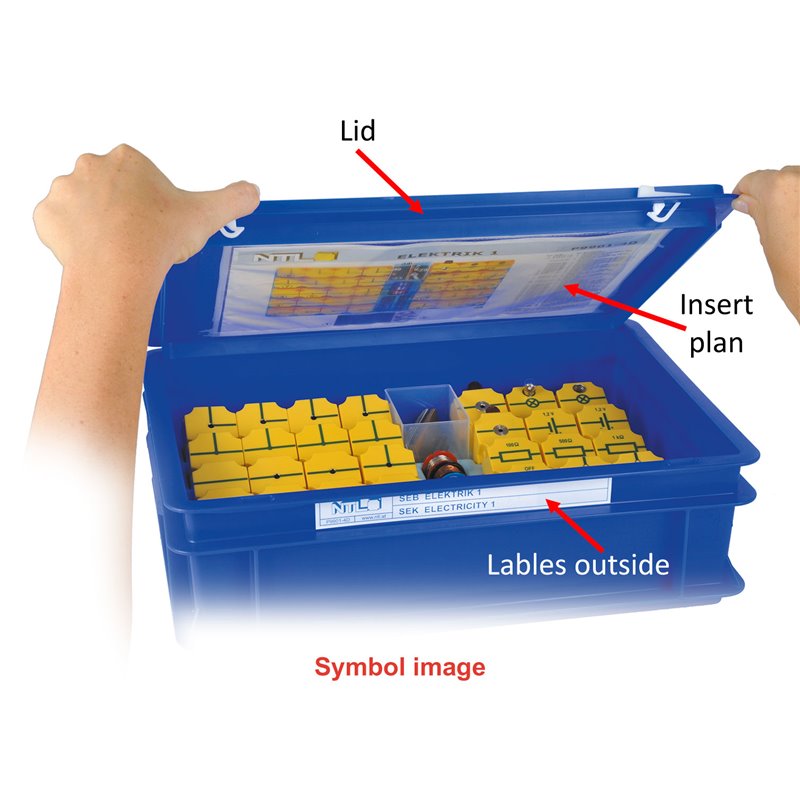

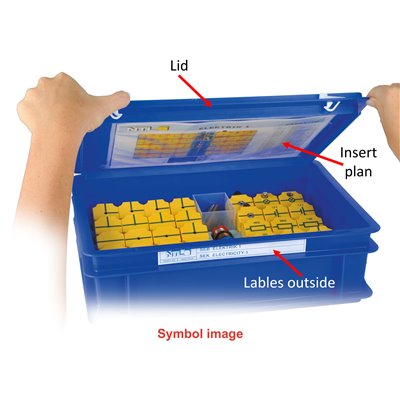

  • Storage box incl. lockable lid
  • Individually shaped plastic box insert
  • Clear box storage plan in the lid

The experiment manuals are not included with our SEK!

You will find the corresponding experiment manual in the accessories tab for this SEK.

Boxeneinlage für P9902-4P SEB Kräfte und Drehbewegung (DEU)

P9902-4P Boxeneinlageplan (PDF) (152.46KB)

Plan for storage of all components for P9902-4P SEK Forces and Torque (ENG)

P9902-4P Box insert plan (PDF) (152.41KB)

Plán rozloženia pre P9902-4P ŽEM Sily a krútiaci moment (SK)

P9902-4P Plán uloženia (PDF) (161.02KB)

List of all experimental topics that can be carried out with this set (ENG)

P9902-4P Index experiments (PDF) (21.42KB)

Auflistung aller Versuchsthemen, welche mit diesem Set durchgeführt werden können (DEU)

P9902-4P Index Versuchsthemen (P (21.67KB)

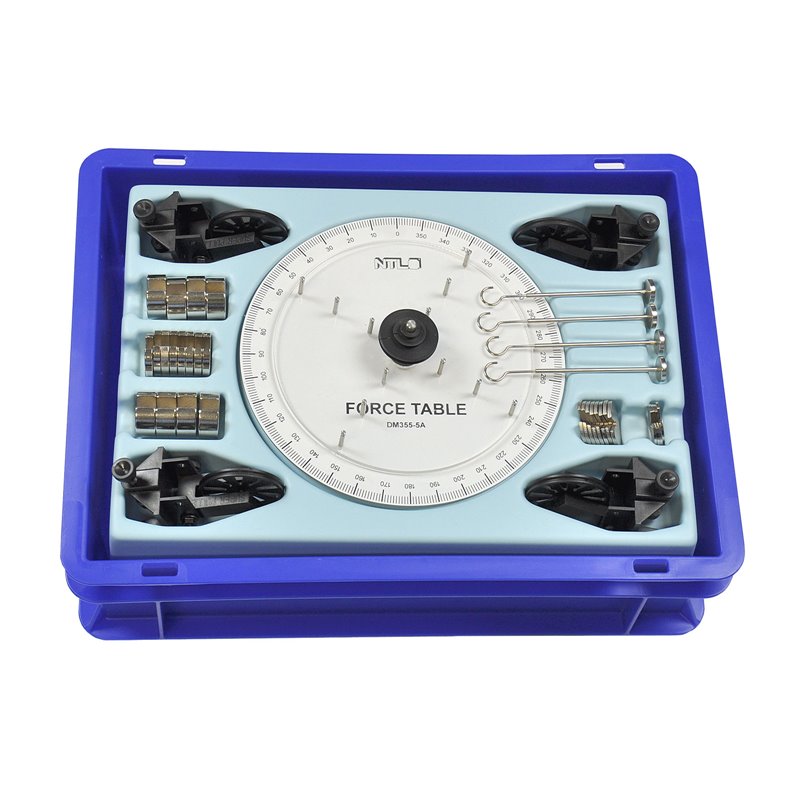

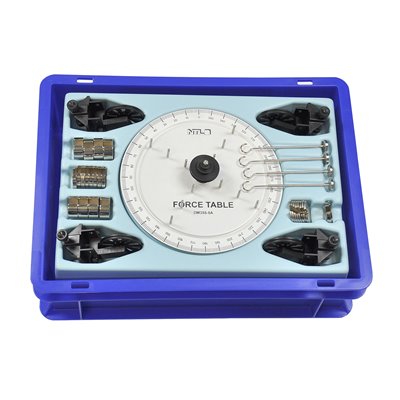

The SEK Forces and Torque consists of the following contents:

Quantity Item no. Description
1x DM355-5A Force table NTL-Item: DM355-5A Force table
4x DM355-5S Pulley with very low friction NTL-Item: DM355-5S Pulley with very low friction
4x P1120-2C Mass hanger, 10 g, for slotted weights, SE NTL-Item: P1120-2C Mass hanger, 10 g, for slotted weights, SE
8x P1120-2F Slotted weight, 50 g, SE NTL-Item: P1120-2F Slotted weight, 50 g, SE
8x P1120-1E Slotted weight, 20 g, SE NTL-Item: P1120-1E Slotted weight, 20 g, SE
8x P1120-2D Slotted weight, 10 g, SE NTL-Item: P1120-2D Slotted weight, 10 g, SE
4x P1120-2B Slotted weight, 5 g, SE NTL-Item: P1120-2B Slotted weight, 5 g, SE
1x DM355-5M Torque accessory for force table NTL-Item: DM355-5M Torque accessory for force table
1x DM355-5Z Additional mass for Torque accessory NTL-Item: DM355-5Z Additional mass for Torque accessory
1x P7906-4P Box insert Forces and Torque NTL-Item: P7906-4P Box insert Forces and Torque
1x P7806-1K Storage box II small, with cover NTL-Item: P7806-1K Storage box II small, with cover
1x Box insert plan
2x Labels
1. Equilibrium on the horizontal force table
MEK 1.1 Composition of several forces Photo of the experimental setup: MEK 1.1 Composition of several forces Symbolic image of a PDF document
MEK 1.2 Force direction and application point Photo of the experimental setup: MEK 1.2 Force direction and application point Symbolic image of a PDF document
2. Equilibrium on the vertical force table
MEK 2.1 Equilibrium of torques Photo of the experimental setup: MEK 2.1 Equilibrium of torques Symbolic image of a PDF document
MEK 2.2 Force direction on a two-sided lever Photo of the experimental setup: MEK 2.2 Force direction on a two-sided lever Symbolic image of a PDF document
3. Computer-assisted measurements
MEK 3.1 Rotation - measuring of the moment of inertia Photo of the experimental setup: MEK 3.1 Rotation - measuring of the moment of inertia Symbolic image of a PDF document
MEK 3.2 Dependence on the moment of inertia of the mass distribution Photo of the experimental setup: MEK 3.2 Dependence on the moment of inertia of the mass distribution Symbolic image of a PDF document
MEK 3.3 Rotation moment of inertia Photo of the experimental setup: MEK 3.3 Rotation moment of inertia Symbolic image of a PDF document
Required accessories:
Quantity Item no. Description
1x P9160-1P Manual Forces and torque
- Student workbook with at least 4 experiments on the topic "Mechanics - Forces and torque"
- Matched to the student experiment box SEK Forces and Torque		 NTL-Item: P9160-1P Manual Forces and torque
We recommend the following optional accessories:
Quantity Item no. Description
1x P4410-5B Sensor WL, movement, 15 ... 600 cm
- Bluetooth sensor from the NTL-WL sensor range
- like all our WL sensors with OLED display!
⇒ In addition to the digital measure value also current connection status, Sensor-ID and charging status of the battery are displayed
- To save money and the environment: the built-in rechargeable battery can of course be replaced by the user
- The following systems are supported: iPadOS®, iOS®, Android™, ChromeOS™, macOS®, Windows®
- WL sensors can also be used wired - in this case even with a higher transmission rate

Android and ChromeOS are registered trademarks of Google LLC. iOS is a registered trademark of Cisco Systems Inc. located in the USA and other states. iPadOS and macOS are registered trademarks of Apple Inc. in the USA and other states. Windows is a registered trademark of Microsoft Corporation in the U.S.A. and other countries.

 NTL-Item: P4410-5B Sensor WL, movement, 15 ... 600 cm
