SEK Hot water
P9902-4S
486.63 €
Tax excluded
This student experiment box requires accessories!
Student experiment equipment set for setting up a model of a solar thermal system for heating water
Outstanding features:
- Solar collector SE: our flat-plate collector for converting radiant energy into heat
- Black-coated copper pipe spiral with a length of approx. 220 cm - Included in the set: the ➜ Circulating membrane pump
- self-absorbing and can also be operated with solar cells due to low power consumption
The SEK student experiments system by NTL:
- Topic-oriented structure and division according to physical sub-areas
- All areas of physics are covered
- Didactically and thematically sensible division of the sub-areas into several boxes
- Each part in the student box can also be ordered separately and purchased individually if required
- Student experiment instructions based on the curriculum and ideally matched to the composition of the boxes
- Clear arrangement of the box contents: only 1 material layer in all boxes, without confusing intermediate shelves
- Extremely stable storage boxes, non-slip stackable - and made from 100% recycled material
- Molded plastic box inserts do not become brittle and have a long service life

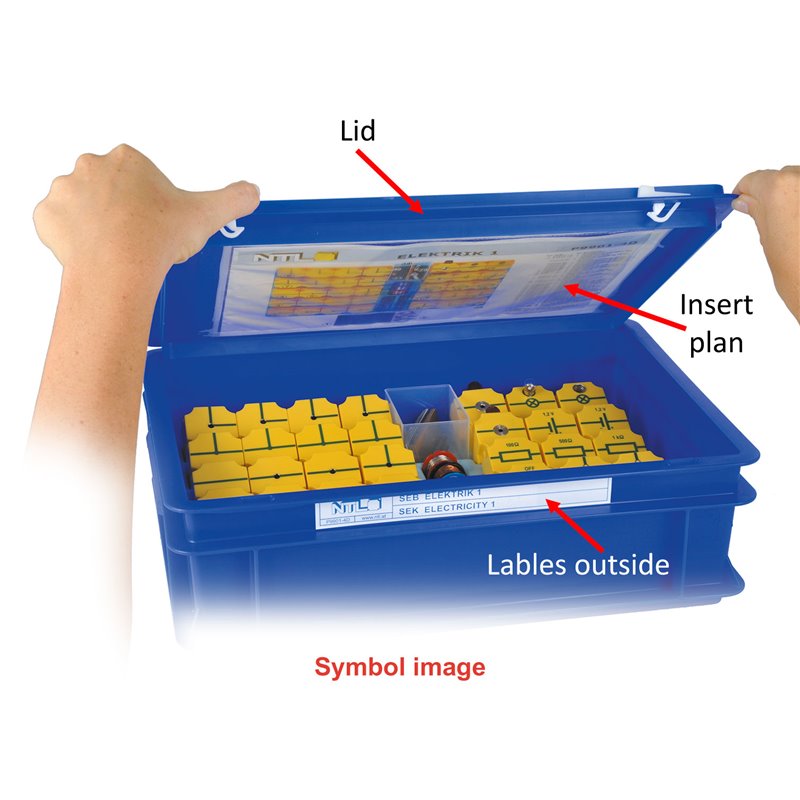

The standard scope of delivery of our SEK contains:
- Complete equipment set for a group of pupils
- Storage box incl. lockable lid
- Individually shaped plastic box insert
- Clear box storage plan in the lid
The experiment manuals are not included with our SEK!
You will find the corresponding experiment manual in the accessories tab for this SEK.

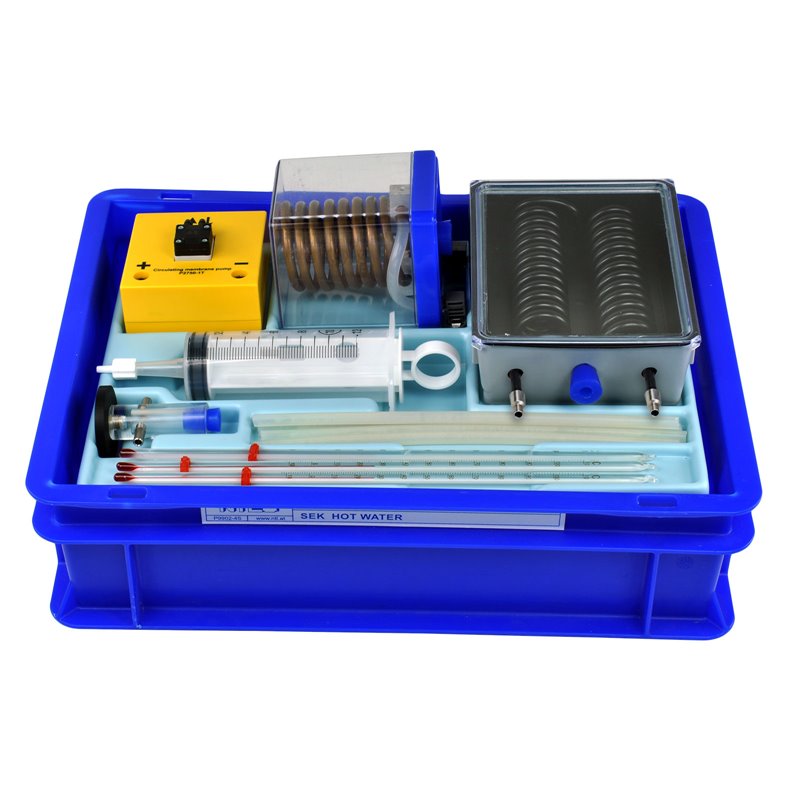

The SEK Hot water consists of the following contents:
| Quantity | Item no. | Description | |
|---|---|---|---|
| 1x | P2750-1S | Solar collector SE - Flat-plate collector for converting radiant energy into heat - Black-coated copper pipe coil approx. 220 cm long on a copper plate - Black collector chamber with transparent cover and an opening with silicone stopper for measuring the temperature inside - Outer diameter of the pipe: Da = 6 mm |
 |
| 1x | P2750-1W | Heat exchanger SE |  |
| 1x | P2751-1T | Pyrometry chamber |  |
| 1x | P2750-1T | Circulating membrane pump - Self-priming, very quiet diaphragm pump with low power consumption ⇒ Also suitable for operation with solar cells - Operating voltage: 2 V ... 12 V DC - Current consumption: 20 mA ... 150 mA - Free flow: 150 ml/min - Max. delivery head: 6.0 m (water) - Max. suction head: -3.0 m (water) - Hose connections D = 4.8 mm |
 |
| 3x | P2220-1A | Graduated laboratory thermometer -10 … +110 °C/ 1°C |  |
| 4x | C7445-3ST | Tubing silicone, D3/6 mm, L24 cm |  |
| 1x | C6100-2A | Syringe, 120ml, plastics |  |
| 1x | P7906-5W | Box inset Hot water |  |
| 1x | P7806-1K | Storage box II small, with cover |  |
| 1x | Box insert plan | ||
| 2x | Labels | ||
| Hot water | |||
| WWS 01 | Hot water |  |
 |
Required accessories:
| Quantity | Item no. | Description | |
|---|---|---|---|
| 1x | P9160-5W | Experiment manual Hot water - Student workbook with 1 experiment on the topic "Hot water - Model of a solar thermal system" - Matched to the student experiment box SEK Hot water |
 |
| 1x | Radiation source for solar operation | ||
We recommend the following optional accessories:
| Quantity | Item no. | Description | |
|---|---|---|---|
| 1x | DT105-1T | Table lamp - Can be used as a radiation source for all experiments with solar cells - This means that solar cell tests can also be carried out regardless of the time of year and degree of coverage |
 |
| 1x | C4340-1D | Thermometer digital dual - Universal digital thermometer for measuring up to two temperatures simultaneously or the temperature difference - Suitable for type K and type J temperature sensors - In combination with the ➜ Temperature sensor with handle Ideal for student experiments |
 |
| 2x | C4126-T2 | Temperature sensor with handle, -50 ... +580 °C, 100 mm, type K - Measuring range: -50 °C ... +580 °C - Measuring accuracy: ±0.6 °C (up to 200 °C), ±2.5 °C (up to 580 °C) - Length of the probe: approx. 90 mm - Suitable for our ➜ Thermometer digital dual |
 |
