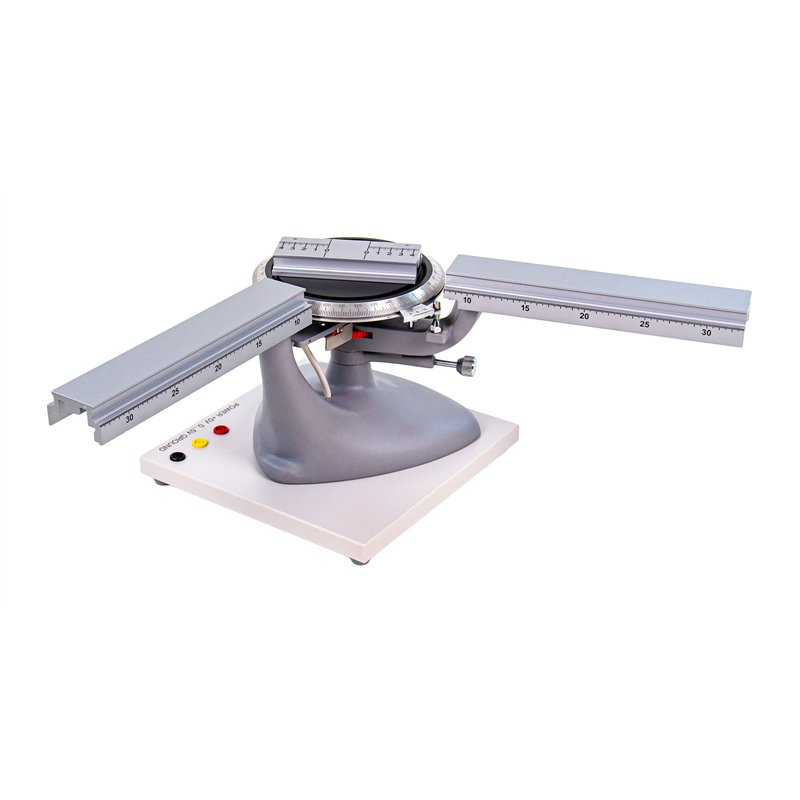

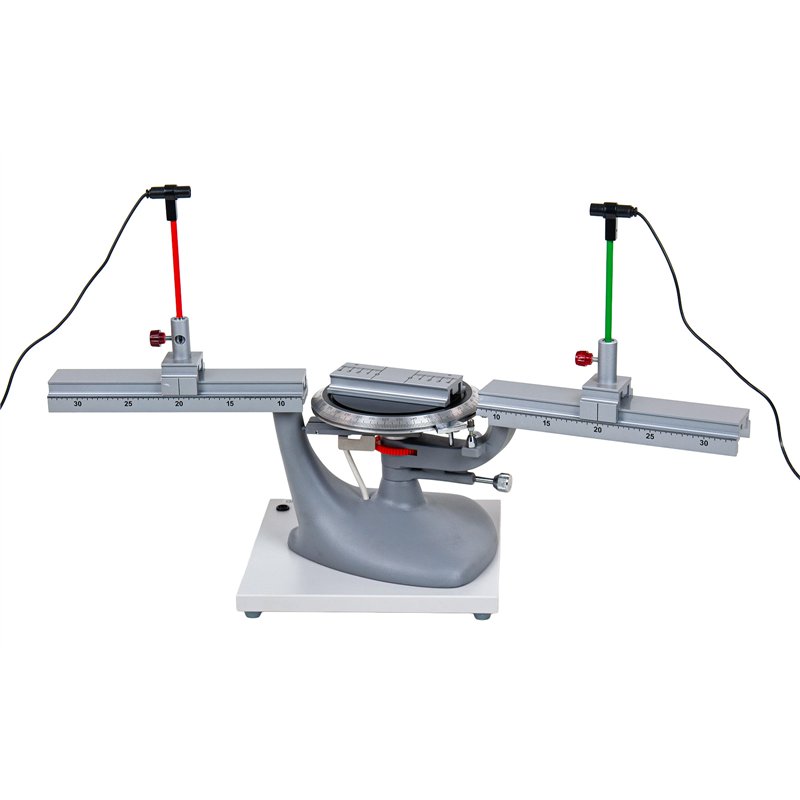

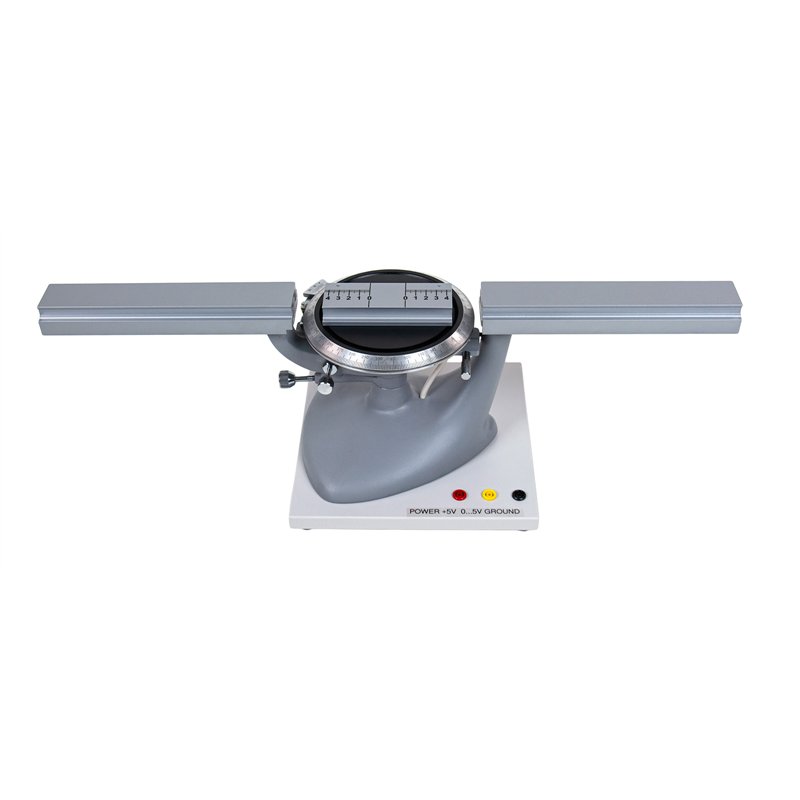

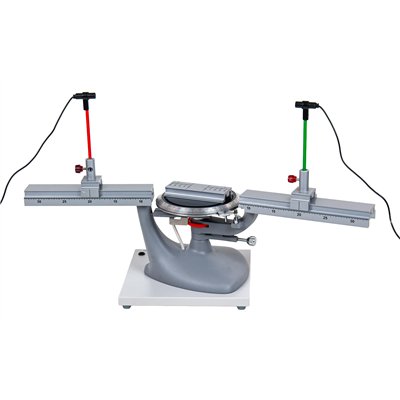

Ultrasonic goniometer
P1860-1G
755.25 €
Tax excluded
- Solid and heavy metal base with fixed leg

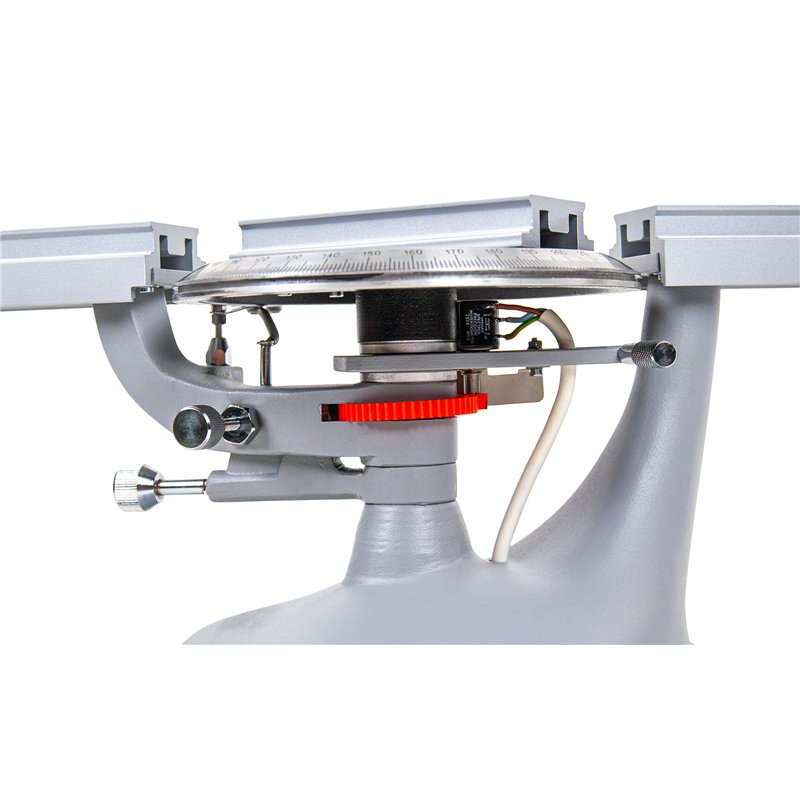

- Second leg rotatable on less friction metal axis, with arrest – and Noniusscrew
- Both legs with special NTL profile and mm scale for the accurate positioning of sliders

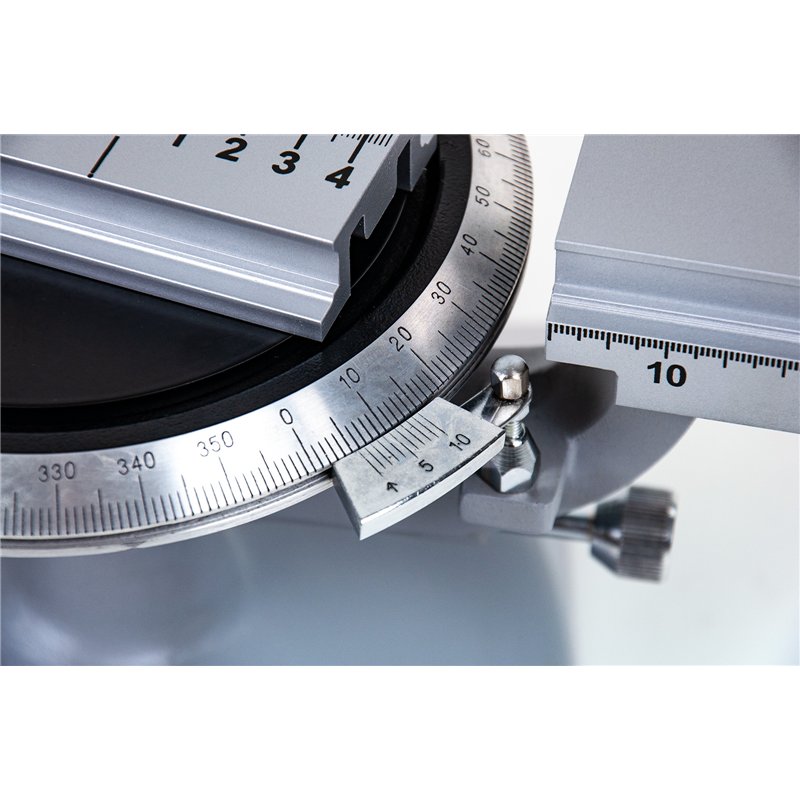

- Angular scale, D = 170 mm, rotatable and fixable independet from the leg, Nonius-reading,
usable angle: 70.0 ... 310,0° min
- Angular scaleplate with special NTL profile
for the mounting of apertures or sliders
Dimensions: approx. 68 x 22 x 19 cm
Weight: approx. 4130 g
