SEK Heat 2
P9902-5C
695.56 €
Tax excluded
This student experiment box requires accessories!
Student experiment equipment set for carrying out 10 advanced experiments in thermodynamics on the following topics:
- Change of the state of aggregation (1 experiment)
- Heat quantitatively (4 experiments)
- Work and power (3 experiments)
- Conversion of energy (2 experiments)
Outstanding features:
- Our extension of the Leslie cube: the ➜ Thermo-octagon
- Hollow vessel with 8 differently treated surfaces (colored lacquered, matt or polished)
- incl. heat source in the lid of the vessel
- measurement is carried out with a thermopile, which is also included in the scope of delivery - Gay-Lussac's law completely in the student experiment!
- the hollow metal sphere and the manometer, in conjunction with the calorimeter, allow the absolute zero temperature to be determined - Thermal generator with clamp for the student experiment
- Peltier element between two cubic aluminum containers in an acrylic glass housing
- for converting heat into electrical energy and vice versa
The SEK student experiments system by NTL:
- Topic-oriented structure and division according to physical sub-areas
- All areas of physics are covered
- Didactically and thematically sensible division of the sub-areas into several boxes
- Each part in the student box can also be ordered separately and purchased individually if required
- Student experiment instructions based on the curriculum and ideally matched to the composition of the boxes
- Clear arrangement of the box contents: only 1 material layer in all boxes, without confusing intermediate shelves
- Extremely stable storage boxes, non-slip stackable - and made from 100% recycled material
- Molded plastic box inserts do not become brittle and have a long service life

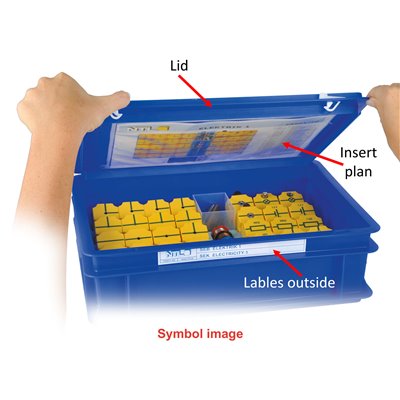

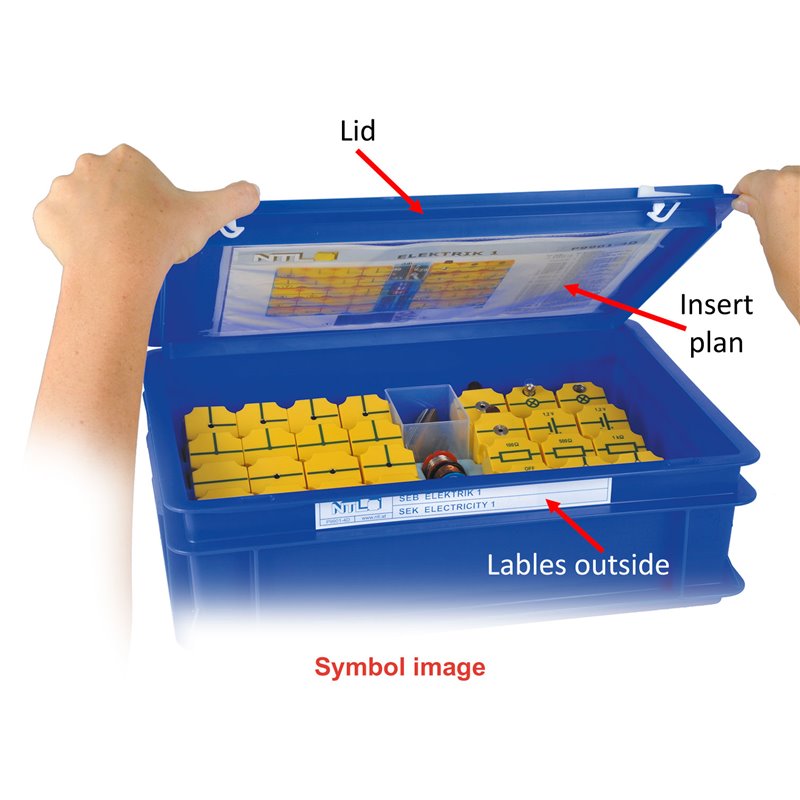

The standard scope of delivery of our SEK contains:
- Complete equipment set for a group of pupils
- Storage box incl. lockable lid
- Individually shaped plastic box insert
- Clear box storage plan in the lid
The experiment manuals are not included with our SEK!
You will find the corresponding experiment manual in the accessories tab for this SEK.

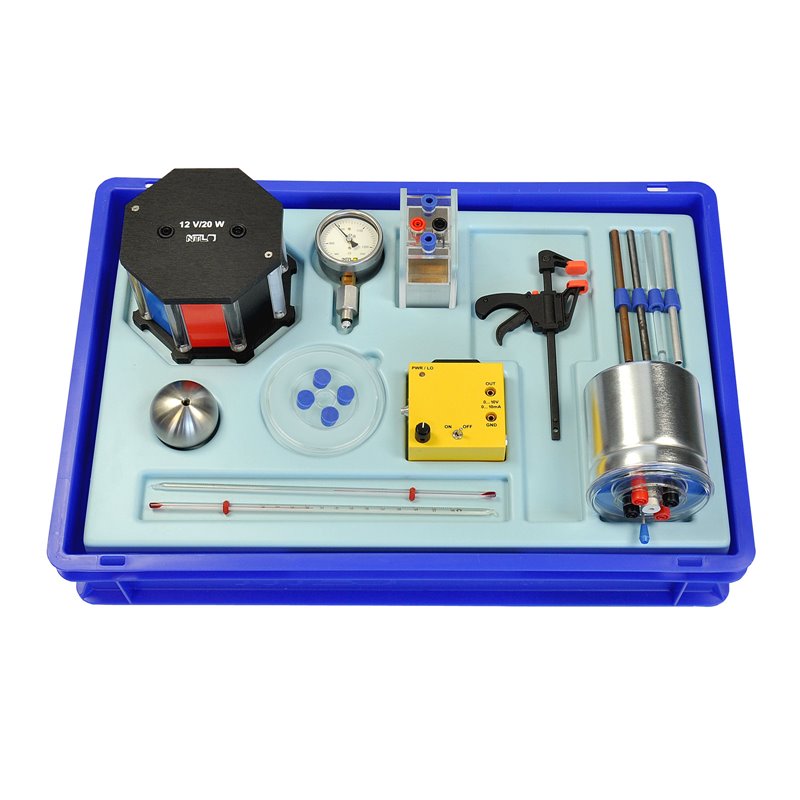

The SEK Heat 2 consists of the following contents:
| Quantity | Item no. | Description | |
|---|---|---|---|
| 1x | P2700-2D | Joule's calorimeter universal |  |
| 1x | P2700-2DL | Lid for calorimeter, without stoppers |  |
| 1x | P2714-1S | Rods for heat-conduction Set of 4 |  |
| 1x | P2712-1K | Sphere for Gays-Lussac |  |
| 1x | P2712-1M | Manometer for Gay-Lussac |  |
| 1x | P2720-1L | Thermo-octagon - Hollow vessel with 8 side faces, each coated differently on the outside - Available surfaces: red, yellow, blue, black, white, matt white, matt metal, polished metal - Heat source in the lid of the housing (halogen lamp 12 V, 20 W) - Dimensions (L x W x H): 150 mm x 150 mm x 105 mm |
 |
| 1x | MB241-2T | Thermopile “compact” - Thermopile with amplifier for converting radiant power into a voltage - Together with a voltmeter (0 ... 10 V), the thermopile forms a pyrometer - Zero adjustment control and LED indicator for operating status - Output voltage: max. ±14 V |
 |
| 1x | P2725-1T | Thermal generator with clamp |  |
| 2x | P2220-1A | Graduated laboratory thermometer -10 … +110 °C/ 1°C |  |
| 4x | C7320-1A | Stopper silicone, 10/14/20 mm |  |
| 1x | P7906-5C | Box insert Heat 2 |  |
| 1x | P7806-1G | Storage box - lid, II, with fleece |  |
| 1x | Box insert plan | ||
| 2x | Labels | ||
| 2. Change of the state of aggregation | |||
| TDS 2.2 | Specific heat of water |  |
 |
| 3. Quantitative heat | |||
| TDS 3.1 | Quantitative heat expansion of gases - Gay Lussac law (absolute zero point) |  |
|
| TDS 3.2 | Quantitative heat conduction of solids |  |
|
| TDS 3.3 | Quantitative heat radiation |  |
|
| TDS 3.4 | Quantitative heat absorption |  |
|
| 4. Work and power | |||
| ELS 4.2.1 | Heat emission and amperage |  |
|
| ELS 4.2.2 | Electrical thermal equivalent |  |
|
| ELS 4.3 | Water equivalent |  |
|
| 5. Energy conversion | |||
| TDS 5.1 | Conversion of heat into electrical energy |  |
|
| TDS 5.2 | Thermoelectrical cooling, "Peltier - effect" |  |
|
Required accessories:
| Quantity | Item no. | Description | |
|---|---|---|---|
| 1x | P9160-5C | Experiment Manual Heat 2 - Student workbook with 10 advanced experiments on the topic "Thermodynamics" - Matched to the student experiment box SEK Heat 2 |
 |
| 1x | Low-voltage power supply - DC voltage: 0 ... 12 V - AC voltage: 0/3/6/12 V |
||
| 1x | Voltmeter - Measuring range 1: 0 ... 30 V - Measuring range 2: 0 ... 10 V - Measuring range 3: 0 ... 100 mV |
||
| 1x | Ammeter - Measuring range: 0 ... 10 A |
||
We recommend the following optional accessories:
| Quantity | Item no. | Description | |
|---|---|---|---|
| 1x | P3130-3D | Low-voltage power supply with digital display - Universal current and voltage supply for student experiments on the subject of Electricity theory" - Infinitely variable and stabilised DC voltage - with digital display of the DC voltage - Electronic overload protection - Of course RiSU-compliant in accordance with the Guideline for Safety in Teaching (RiSU) of the Standing Conference of the Ministers of Education and Cultural Affairs KMK in the update of 2023 |
 |
| 1x | P3212-20 | Multimeter analogue 12 - Unique analogue multimeter for student experiments in electricity theory - Didactically designed and specially tailored to pupils' needs: the large mirror scale - All measuring ranges available in DC and AC - 1 mV final value range for measuring very low voltages even without a preamplifier |
 |
| 1x | P3245-1M | Multimeter digital, True RMS - Universal digital multimeter for student experiments - Safety category: CAT IV (up to 600 V), CAT III (up to 1,000 V) - Fuse protection in all current measuring ranges - incl. temperature sensor |
 |
| 1x | P3250-1M | Multimeter digital “BT“, True RMS - Technically identical to P3245-1M, but with Bluetooth data transmission.g - Free apps for Android™, iOS and iPadOS ® |
 |
